Revolutionary ATEX and IECEx Certified Zone 1 Pressurized welding enclosure to make the world’s most hazardous areas safer.
Certified Habitat Solutions
WELDING HABITAT:
ATEX & IECEX CERTIFIED SOLUTIONS

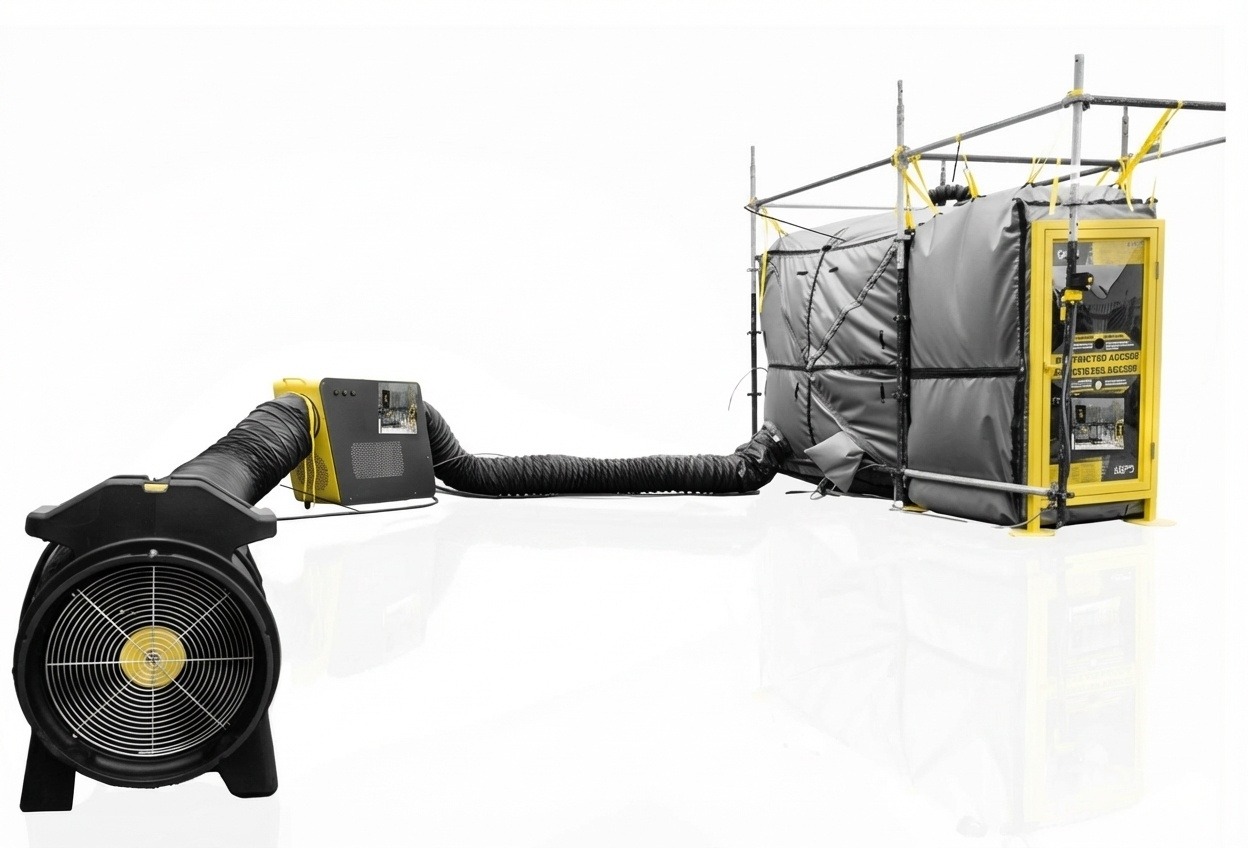

KEY FEATURES OF THE CAIRN COCOON WELDING HABITAT
Modular and Flexible Design
- Constructed from anti-static and flame-retardant material
- Adaptable and can be installed around any part of your energy facility, providing a robust barrier against ignition sources and flammable atmospheres.
Pressurization for Safety
- The habitat is maintained at a pressure of at least 25pa using a portable fan, ensuring that flammable gases cannot infiltrate through the habitat panels or openings.
- An air lock system maintains pressure during entry and exit, further preventing gas ingress.
Advanced Control System
- A sophisticated control system continuously monitors for flammable gases, toxic gases, oxygen depletion or enrichment, pressure, high temperatures, and airflow within and around the habitat.
- It automatically shuts down hot work tools in case of an alarm condition, and provides visual and audible alerts to ensure immediate awareness and action.
Customizable Modules
- The modular nature of our control system allows for the integration of additional devices such as gas detectors, emergency stops, and alarms, tailored to meet specific project risks and challenges.
COMPONENTS OF HABITATS
- EX Certified for Zones 1 and 2
- Certified for use with Hydrogen
- Extremely lightweight and flexible
- Panels are flame retardant, antistatic, anti-slip and tear resistant
- Exceptionally safe airlock system
- Monitoring and control system
- H2S detection, flowrate monitor
- Pressure monitoring
Advanced, fully certified equipment:
Our state-of-the-art systems are SIL-rated and fully ATEX and IECEx certified for Zone 1 applications, ensuring safe and compliant use worldwide.
Efficient power requirements:
Zone 1 fans operate on 110V, eliminating the need for plant air and simplifying site logistics.
Global leaders in habitat solutions:
We offer industry-leading habitat equipment rentals.
Cost-effective systems:
Our Zone 1 habitat solutions are 30–40% more affordable.
Highly skilled Technicians:
Benefit from our extensive pool of experienced habitat technicians ready to support operations of any scale.
Decades of expertise:
Over 50 years of combined experience in habitat operations and safety.
Rapid mobilization:
We offer fully responsive, short-notice deployment to meet urgent operational needs.
DUCT AND HABITAT GAS DETECTION
Hydrogen Sulphide (H2S) – Alarms at 5ppm / Butane C4H10 – Alarms at 10% LEL / Ethane C2H6 – Alarms at 10% LEL / Hydrogen H2 – Alarms at 10% LEL / Isobutane HC(CH3)3 – Alarms at 10% LEL / Isobutylene C4H8 – Alarms at 10% LEL / Isopropanol C3H8O – Alarms at 10% LEL / Methane CH4 – Alarms at 10% LEL /Methyl Ethyl Ketone C4H8O – Alarms at 10% LEL / Octane C8H18 – Alarms at 10% LEL / Pentane C5H12 – Alarms at 10% LEL / Propane C3H8 – Alarms at 10% LEL / Propylene C3H6 – Alarms at 10% LEL / Toluene C7H8 – Alarms at 20% LEL / Xylene C8H10 – Alarms at 20% LEL
AIRFLOW MONITORING
Habitat Differential Pressure – Alarms at <25Pa Airflow – Alarms at <0.4m3/s
CONNECTIONS
1 remote sounder beacon
Up to 10 tool stops
Up to 10 remote ESD buttons
Up to 20 area gas detectors
ALARMS / INDICATORS
3 alarm tones
3 coloured indicator lamps
1 beacon
15 distinct alarms

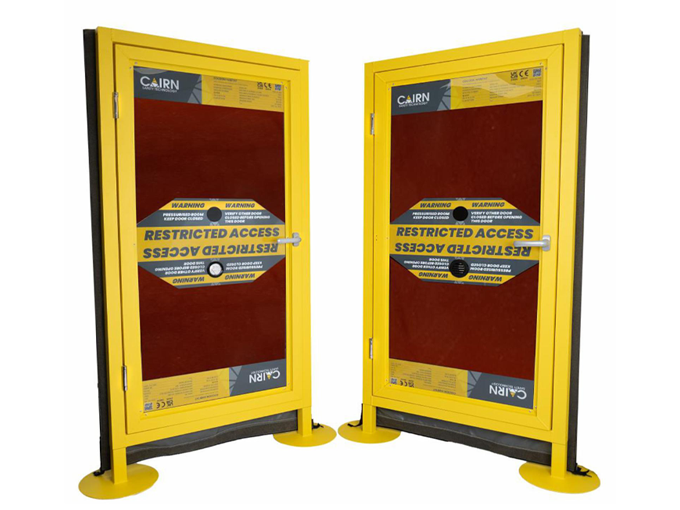

AIRLOCK DOORS
- Weld screen vision panel with UV protection
- Lightweight design
- Magnehelicpressure gauge for precise internal pressure measurement
- Anti-static
- Push bar door escape

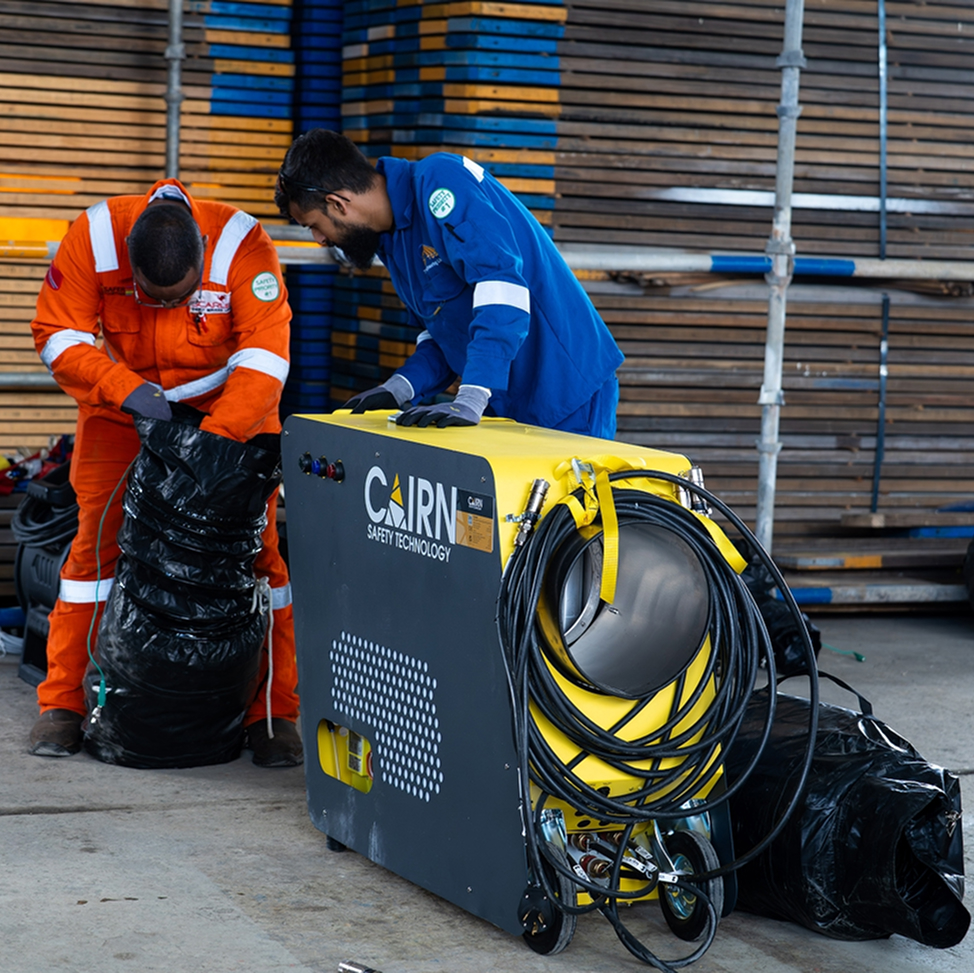

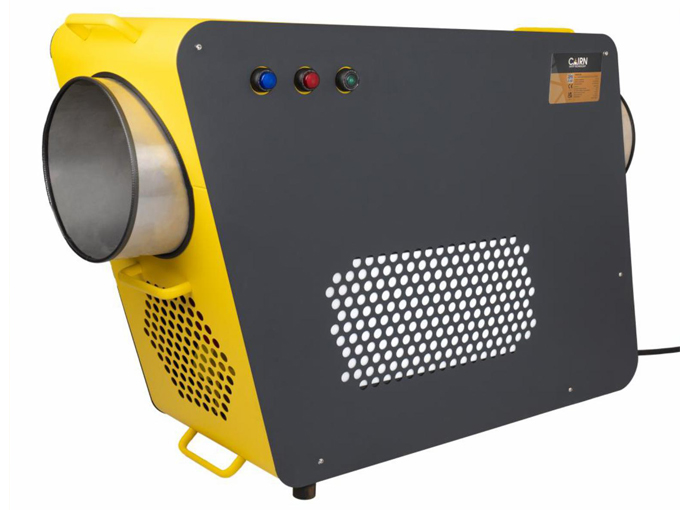

CONTROL SYSTEM
- Monitors air inlet for 15 flammable gases & H2S, closes duct on gas detection
- Flow rate and habitat pressure monitoring
- Purge timer with habitat size / purge duration selection
- Sounder Beacon with Audio and Visual Alarm
- Links to multiple area detectors, habitat detectors, alarms, e-stops and toolstops
- Datalogging and fault detection
- Lightweight & portable

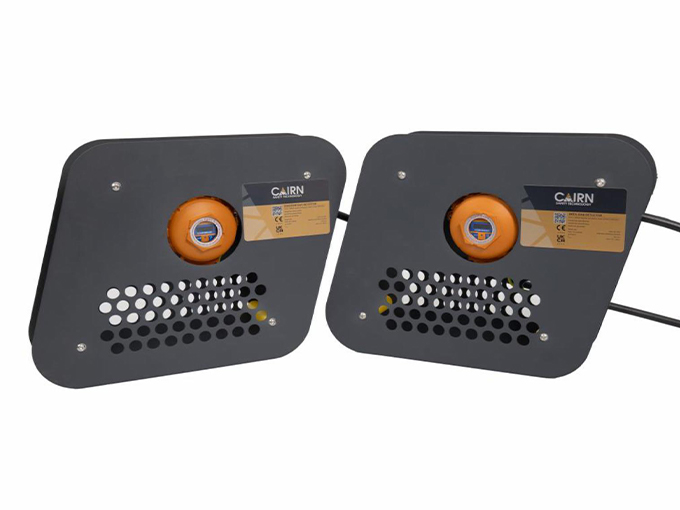

AREA GAS DETECTORS
- Lightweight design
- Flammable, H2S, O2 and CO options
- Flammable detector is capable of detecting 15 gas types with accurate LEL measurement
- Long life and stable operation
- Up to 20 are linkable for covering extensive areas
- Latched alarm feature

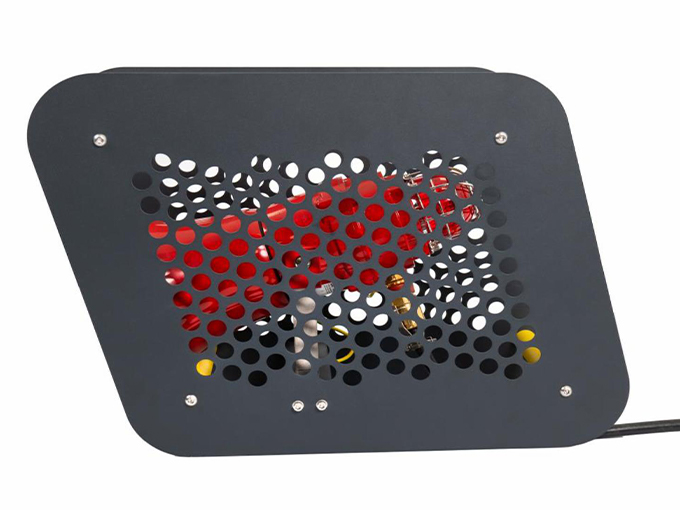

ALARM
- Lightweight
- Combines audio and visual alarms
- Suitable for installation inside the habitat

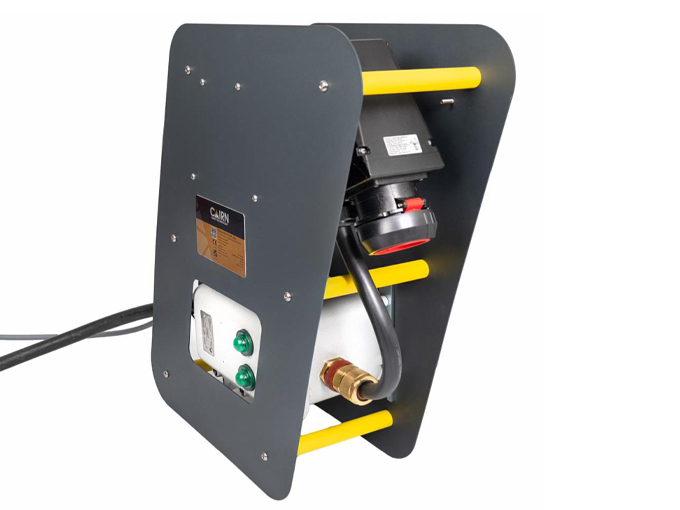

TOOLSTOP
- Lightweight design
- Automatic shutdown of welding equipment if pressure is lost or gas is detected inside or outside the habitatI
- Integration with other toolstopsfor enhanced functionality

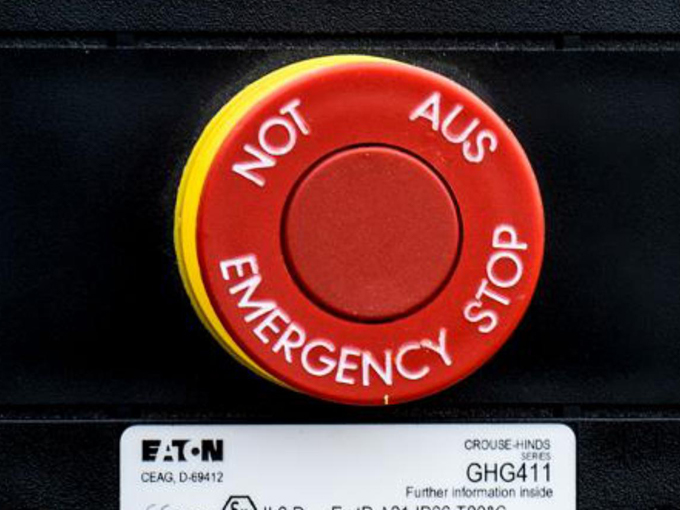

EMERGENCY STOP BUTTON
- 2 x ESD devices
- One ESD device is external to the habitat
- The other ESD device is located internally within the habitat

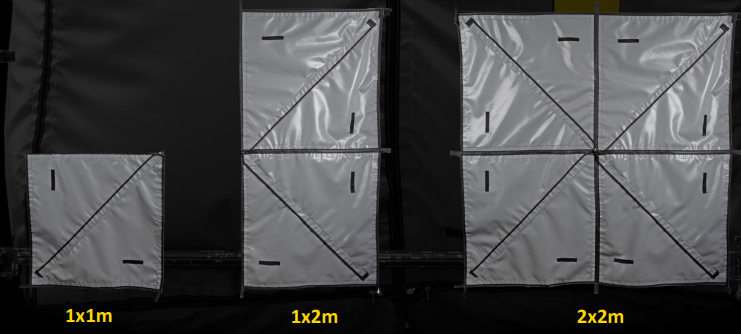

PANELS
(Comes in different sizes)
